Central & 49 Avenue Station

This plan defines two core station components: the station intersection and the location of platforms within the intersection. Other preliminary design details are provided for additional context but are conceptual and will be finalized during the engineering phase of the project. Existing conditions are shown below for reference.

Read the full plan for more detail

Proposed Station Location

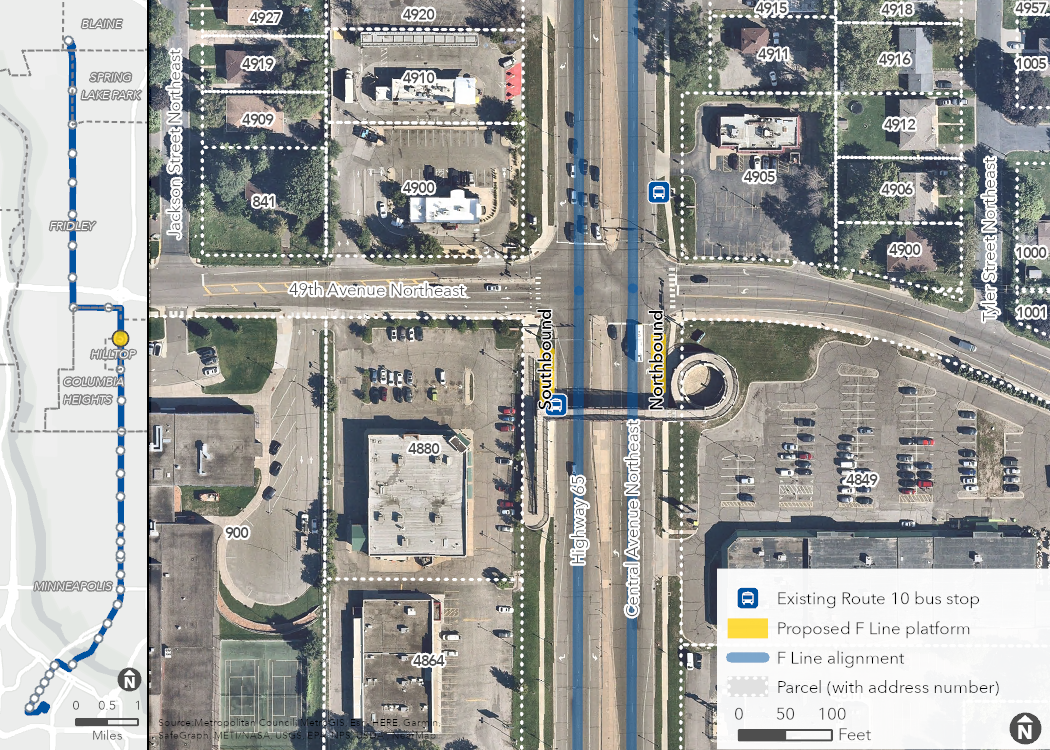

Aerial map of proposed Central & 49th Avenue Station location, showing the proposed platforms, F Line alignment, and surrounding area, including property boundaries (with address numbers).

Proposed Station Plan

On the image below, click and drag the slider arrows from right to left to show existing conditions, and from left to right to show the proposed station plan.

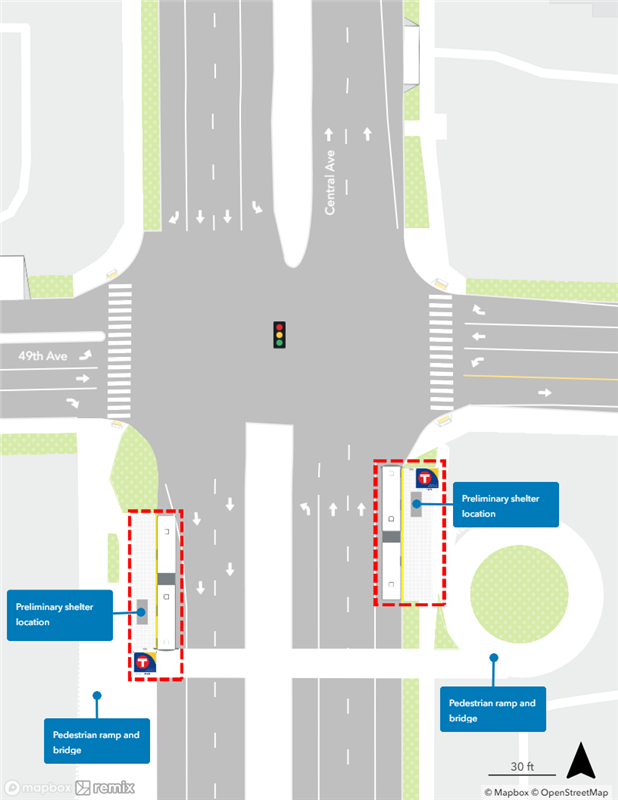

Map of proposed Central & 49th Avenue Station plan. Northbound curbside platform proposed nearside of 49th Avenue. Southbound curbside platform proposed farside of 49th Avenue.
Proposed

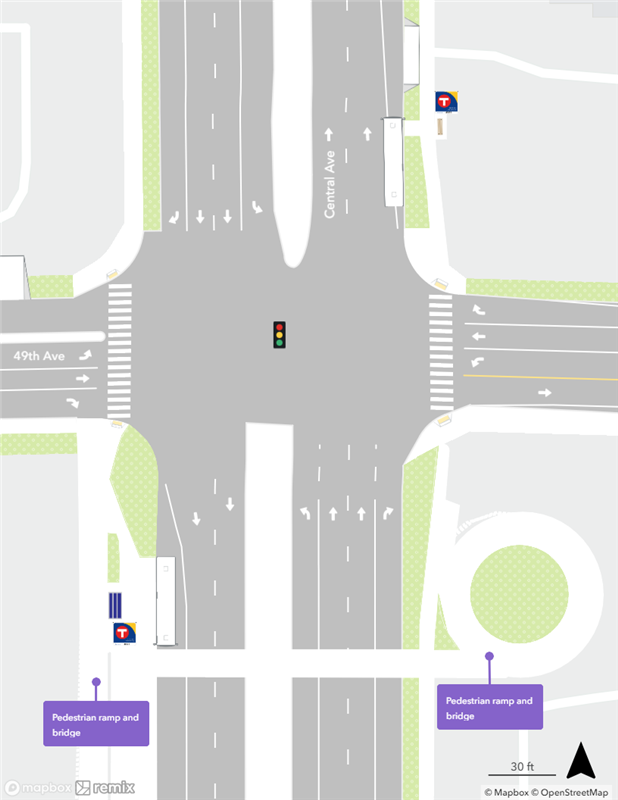

Map of existing conditions at the Central & 49th Avenue Station area.
Existing
